Product Summary

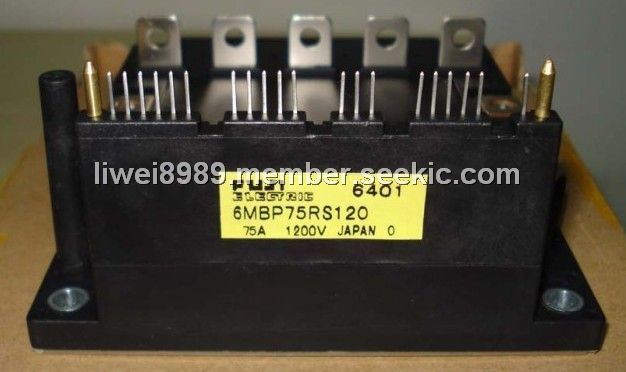

The 6MBP75RS120 is an Independent IGBT Power Module. Applications include: Inverter for motor drive, AC and DC servo drive amplifier, UPS (Uninterruptible power supply).
Parametrics
6MBP75RS120 specifications: (1)Circuits Per Package=1; (2)V(BR)CES (V)=1.2k; (3)V(BR)GES (V)=20; (4)I(C) Abs.(A) Collector Current=100; (5)Absolute Max. Power Diss. (W)=625; (6)I(CES) Min. (A)=1.5m; (7)@V(CES) (V) (Test Condition)=1.2k; (8)I(GES) Max. (A)=300n; (9)@V(GES) (V) (Test Condition)=20; (10)V(CE)sat Max.(V)=3.0; (11)@I(C) (A) (Test Condition)=75; (12)@V(GE) (Test Condition)=15; (13)V(GE)th Max. (V)=6.5; (14)@I(C) (A) (Test Condition)=2.0m; (15)@V(CE) (V) (Test Condition)=20; (16)td(on) Max (s) On time delay=60n; (17)t(r) Max. (s) Rise time=140n; (18)t(d)off Max. (s) Off time=600n; (19)t(f) Max. (s) Fall time.=90n; (20)Package=MODULE-var.
Features
6MBP75RS120 features: (1)Low power loss and soft switching; (2)Converter Diode Bridge Dynamic Brake Circuit; (3)Compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating Protection; (5)Higher reliability because of a big decrease in number of parts in built-in control circuit; (6)Temperature protection provided by directly detecting the junction temperature of the IGBTs.
 |
