Product Summary

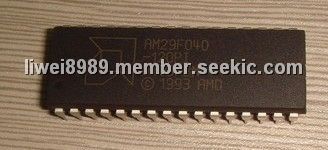

AM29F040-120PI is a 4 Mbit, 5.0 Volt-only Flash memory organized as 512 Kbytes of 8 bits each. The AM29F040-120PI is offered in a 32-pin package. This device is designed to be programmed in-system with the standard system 5.0 V VCC supply. A 12.0 V VPP is not required for write or erase operations. The AM29F040-120PI can also be reprogrammed in standard EPROM programmers. The standard AM29F040-120PI offers access times between 55 ns and 150 ns, allowing operation of high-speed microprocessors without wait states.
Parametrics
AM29F040-120PI absolute maximum ratings: (1)Storage Temperature Ceramic Packages: –65℃ to +150℃; (2)Plastic Packages: –65℃ to +125℃; (3)Ambient Temperature with Power Applied: –55℃ to +125℃; (4)Voltage with Respect to Ground All pins except A9: –2.0 V to +7.0 V; (5)VCC: –2.0 V to +7.0 V; (6)A9: –2.0 V to +13.0 V; (7)Output Short Circuit Current: 200 mA.
Features
AM29F040-120PI features: (1)5.0 V ± 10% for read and write operations; (2)Minimizes system level power requirements; (3)Compatible with JEDEC-standards; (4)Pinout and software compatible with singlepower-supply Flash; (5)Superior inadvertent write protection; (6)Minimum 100,000 write/erase cycles guaranteed; (7)High performance; (8)55 ns maximum access time; (9)Sector erase architecture.
Diagrams
 |
