Product Summary

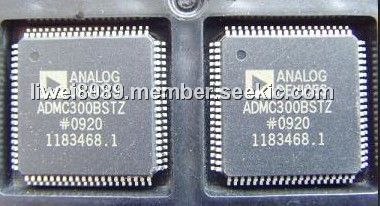

The ADMC300BSTZ is a single-chip DSP-based controller, suitable for high performance control of ac induction motors, permanent magnet synchronous motors and brushless dc motors. The ADMC300BSTZ integrates a 25 MIPS, fixed-point DSP core with a complete set of motor control peripherals that permits fast, efficient development of servo motor controllers. The DSP core of the ADMC300BSTZ is the ADSP-2171, which is completely code compatible with the ADSP-2100 DSP family and combines three computational units, data address generators and a program sequencer. The computational units comprise an ALU, a multiplier/accumulator (MAC) and a barrel shifter.

Parametrics

ADMC300BSTZ absolute maximum ratings: (1)Supply Voltage (VDD): –0.3V to +7.0V; (2)Supply Voltage (AVDD): –0.3V to +7.0V; (3)Input Voltage: –0.3V to VDD+0.3V; (4)Output Voltage Swing: –0.3V to VDD+0.3V; (5)Operating Temperature Range (Ambient): –40℃ to +85℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (5 sec): +280℃.

Features

ADMC300BSTZ features: (1)25 MIPS Fixed-Point DSP Core; (2)Single Cycle Instruction Execution (40 ns); (3)ADSP-2100 Family Code Compatible; (4)Independent Computational Units ALU; (5)Multiplier/Accumulator; (6)Barrel Shifter; (7)Multifunction Instructions; (8)Single Cycle Context Switch; (9)Powerful Program Sequencer; (10)Zero Overhead Looping; (11)Conditional Instruction Execution; (12)Two Independent Data Address Generators.

Diagrams

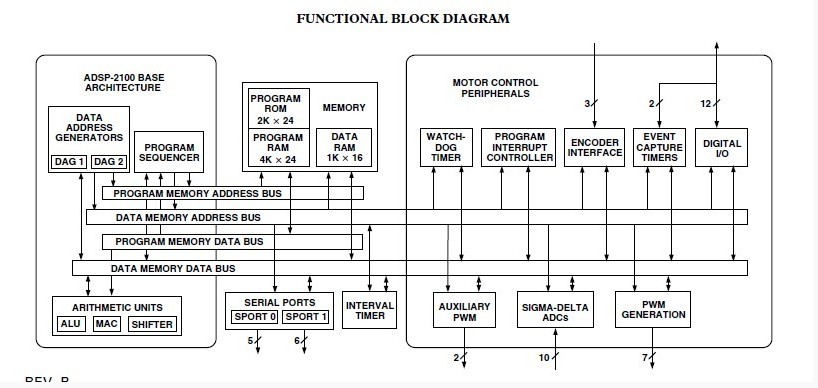

ADMC300BSTZ functional block diagram
