Product Summary
The AM29F016D-90FI is a 16 Mbit, 5.0 volt-only Flash memory organized as 2,097,152 bytes. The 8 bits of data appear on DQ0–DQ7. The AM29F016D-90FI is offered in 48-pin TSOP, 40-pin TSOP, and 44-pin SO packages. The AM29F016D-90FI is also available in Known Good Die (KGD) form. For more information, refer to publication number 21551. This AM29F016D-90FI is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F016D-90FI can also be programmed in standard EPROM programmers.
Parametrics
AM29F016D-90FI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to 7.0 V; (4)A9, OE#, RESET: –2.0 V to 12.5 V; (5)All other pins: –2.0 V to 7.0 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29F016D-90FI features: (1)5.0 V ± 10%, single power supply operation; (2)Manufactured o0.23 μm process technology; (3)High performance; (4)Low power consumption; (5)Flexible sector architecture; (6)Minimum 1,000,000 program/erase cycles per sector guaranteed; (7)20-year data retentioat 125℃; (8)Unlock Bypass Program Command.

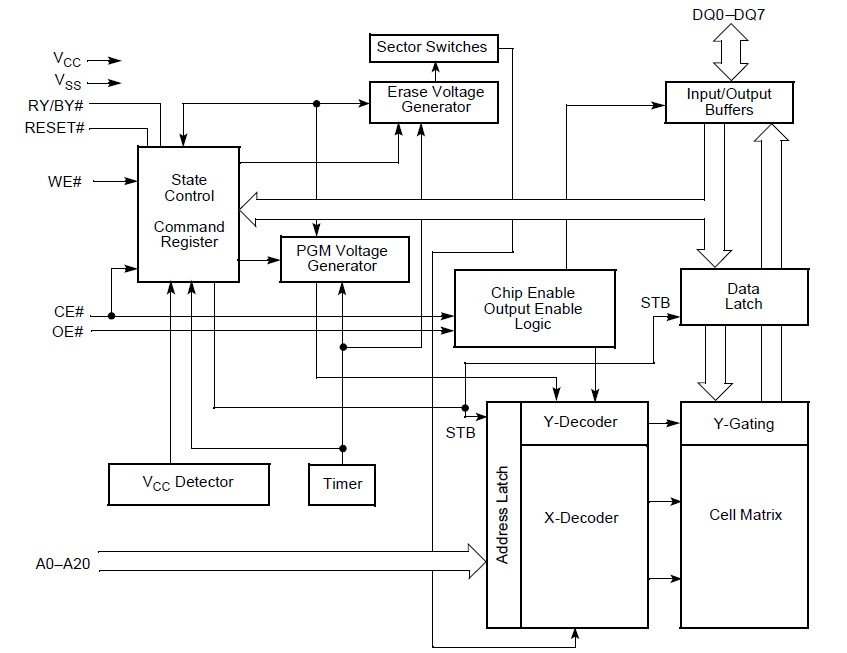

Diagrams
 |
