Product Summary
The MC68HC908MR8CFA is a low-cost, high-performance, 8-bit microcontroller unit (MCU). The MC68HC908GT8CFB uses the enhanced central processor unit and is available with a variety of modules, memory sizes and types, and package types.
Parametrics
MC68HC908MR8CFA absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to + 6.0 V; (2)Input voltage, VIn: VSS – 0.3 to VDD + 0.3 V; (3)Maximum current per pin excluding those specified below, I: ± 15 mA; (4)Maximum current for pins PTA5-PTA7, PTD4, IPTA5–PTA7: ± 20 mA; (5)Maximum current for pins PTC0–PTC4, IPTC0–PTC4: ± 25 mA; (6)Maximum current into VDD, Imvdd: 150 mA; (7)Maximum current out of VSS, Imvss: 150 mA; (8)Storage temperature, Tstg: –55 to +150℃.
Features
MC68HC908MR8CFA features: (1)Eight channels with multiplexed input; (2)Linear successive approximation with monotonicity; (3)8-bit resolution; (4)Single or continuous conversion; (5)Conversion complete flag or conversion complete interrupt; (6)Selectable ADC clock.

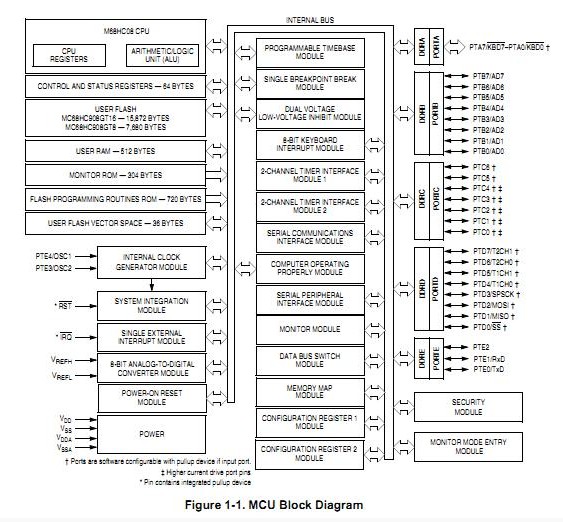

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

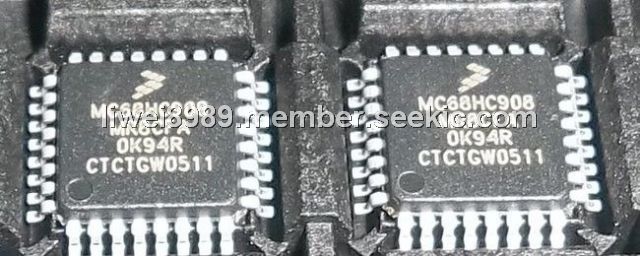

 MC68HC908MR8CFA |
|
IC MCU 8K FLASH 8MHZ PWM 32-LQFP |
Data Sheet |
Negotiable |
|
||||
