Product Summary

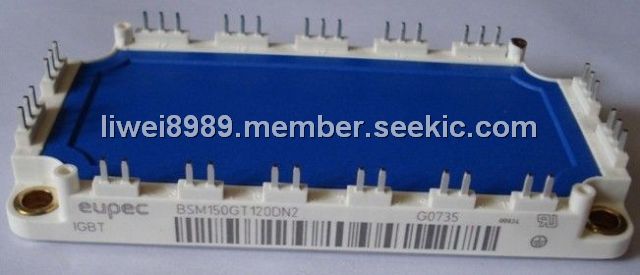

The BSM150GT120DN2 is an IGBT power module.

Parametrics

BSM150GT120DN2 absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage, VCGR: 1200 V; (3)Gate-emitter voltage VGE: ± 20V; (4)DC collector current, IC: 200A; (5)Pulsed collector current, tp = 1 ms, ICpuls: 400A; (6)Power dissipation per IGBT: 1250W; (7)Chip temperature Tj: + 150 ℃; (8)Storage temperature Tstg: -55 to + 150℃; (9)Thermal resistance, chip case RthJC≤ 0.12 K/W; (10)Diode thermal resistance, chip case RthJCD≤ 0.28K/W; (11)Insulation test voltage, t = 1min. Vis: 2500 Vac; (12)Creepage distance: 20 mm; (13)Clearance: 11mm; (14)DIN humidity category, DIN 40 040: F sec.

Features

BSM150GT120DN2 features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

Diagrams

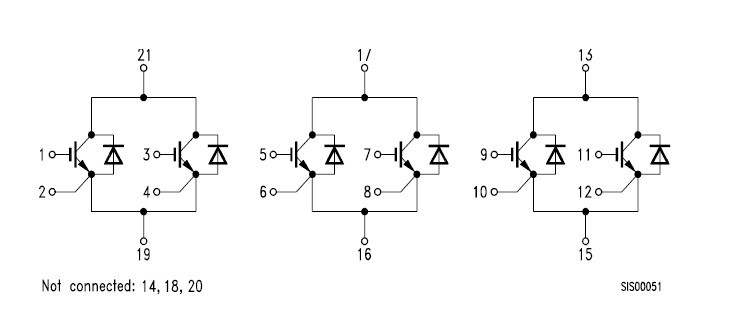

BSM150GT120DN2 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM150GT120DN2
BSM150GT120DN2
Infineon Technologies
IGBT Modules 1200V 150A TRIPACK
Data Sheet
0-1: $155.20
1-10: $139.67
