Product Summary

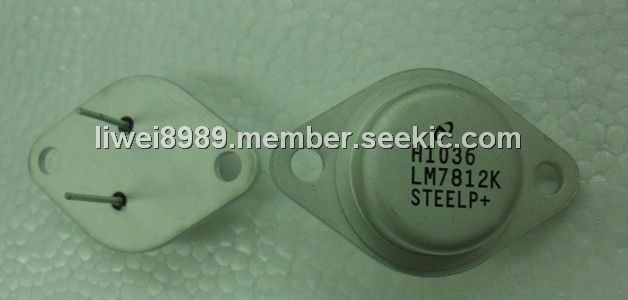

The LM7812K is a voltage regulator.
Parametrics
LM7812K absolute maximum ratings: (1)Input Voltage, VIN: 35 V max; (2)Power Dissipation, PD: 15 W max; (3)Operating Temperature Range: -20 to 80 ℃; (4)Storage Temperature Range: -55 to 150 ℃.
Features
LM7812K features: (1)Output current in excess of 1A; (2)Internal thermal overload protection; (3)No external components required; (4)Output transistor sate area protection; (5)Internal short circuit current limit; (6)Available in the alumnum TO-3 package.
Diagrams
 |
