Product Summary

The STPS3045CT is a Dual center tap Schottky rectifier. It is suited for SwitchMode Power Supply and high frequency DC to DC converters. The STPS3045CT is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Parametrics

STPS3045CT absolute maximum ratings: (1)Repetitive peak reverse voltage 45 V; (2)RMS forward current 30 A; (3)Average forward current:30A; (4)Surge non repetitive forward current:220A; (5)Repetitive peak reverse current:1A; (6)Non repetitive peak reverse current:3A; (7)Repetitive peak avalanche power:6000W; (8)Storage temperature range:-65℃ to +175℃; (9)Maximum operating junction temperature:175℃; (10)Critical rate of rise of reverse voltage:10000V/us.

Features

STPS3045CT features: (1)very small conduction losses; (2)negligible switching losses; (3)extremely fast switching; (4)low thermal resistance; (5)insulated package: TOP-3I; (6)Insulating voltage = 2500V RMS; (7)Capacitance = 12pF; (8)avalanche capability specified.

Diagrams

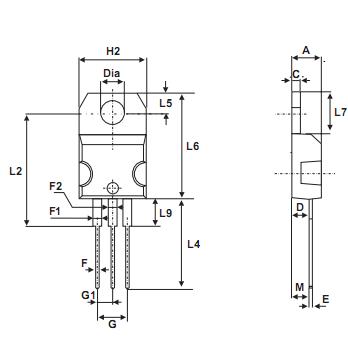

STPS3045CT package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

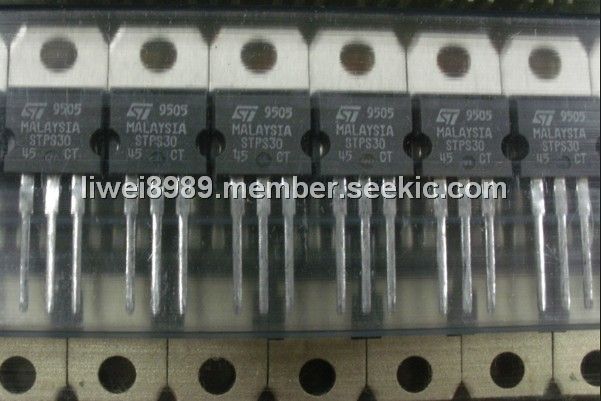

STPS3045CT
STPS3045CT

STMicroelectronics

Schottky (Diodes & Rectifiers) 2X15 Amp 45 Volt

Data Sheet

0-1: $0.57
1-10: $0.52
10-100: $0.44
100-250: $0.40
STPS3045CT-TR
STPS3045CT-TR

Other


Data Sheet

Negotiable
