Product Summary

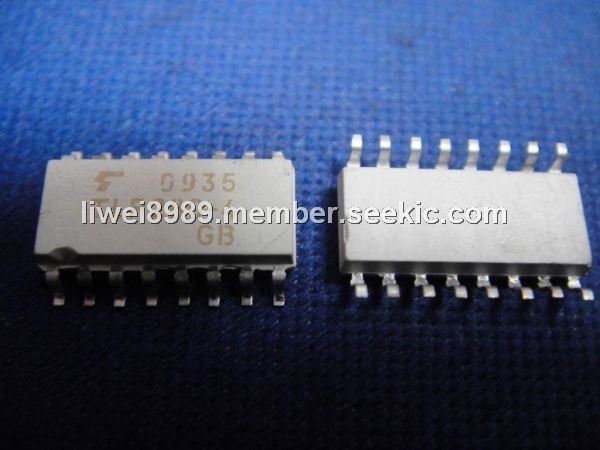

The TLP280-4 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers. The TLP280-4 consists of photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.
Parametrics
TLP280-4 absolute maximum ratings: (1)Forward current IF(RMS): ±50 mA; (2)Forward current derating ΔIF /℃: -0.5 (Ta ≥ 25℃) mA /℃; (3)Pulse forward current IFP: ±1 (100μs pulse, 100pps) A; (4)Junction temperature Tj: 125 ℃; (5)Collector.emitter voltage VCEO: 80 V; (6)Emitter.collector voltage VECO: 7 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation (1 circuit) PC: 100 mW; (9)Collector power dissipation derating: -1.0 mW /℃; (10)Junction temperature Tj: 125 ℃; (11)Storage temperature range Tstg: -55~125 ℃; (12)Operating temperature range Topr: -55~100 ℃; (13)Lead soldering temperature Tsol: 260 (10s) ℃; (14)Total package power dissipation (1 circuit) PT: 170 mW; (15)Total package power dissipation derating: -1.7 mW /℃; (16)Isolation voltage, BVS: 2500 Vrms.
Features
TLP280-4 features: (1)Collector-emitter voltage: 80 V (min); (2)Current transfer ratio: 50% (min) Rank GB: 100% (min); (3)Isolation voltage: 2500 Vrms (min); (4)UL recognized: UL1577, file No. E67349; (5)BSI approved.

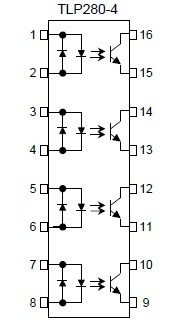

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP280-4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
TLP280-4(GB) |
|
PHOTOCOUP QUAD TRANS OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB,F) |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms AC input |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB,J,F) |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms AC input |
Data Sheet |
|
|
||||||||||||||||||
|
TLP280-4(GB-TP) |
|
PHOTOCOUP QUAD TRANS OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB-TP,F) |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB-TP,J,F |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
|
|
||||||||||||||||||
|
TLP280-4(GB-TP,J,F) |
|
PHOTOCOUP QUAD TRANS OUT 16-SOP |
Data Sheet |
|
|
||||||||||||||||||
