Product Summary

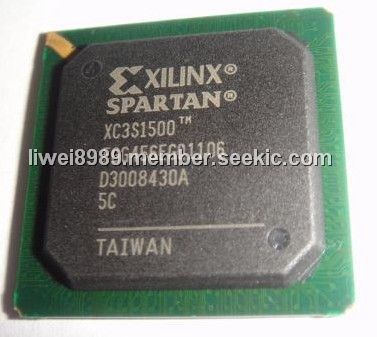

The XC3S1500-FGG456 is a Field-Programmable Gate Array. It is designed to meet the needs of high volume, cost-sensitive consumer electronic applications. It offers densities ranging from 50,000 to five million system gates.
Parametrics
XC3S1500-FGG456 absolute maximum ratings: (1)VCCINT, Internal supply voltage: –0.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage: –0.5 to 3.00 V; (3)VCCO, Output driver supply voltage: –0.5 to 3.75 V; (4)VREF, Input reference voltage: –0.5 to VCCO+0.5 V; (5)TSOL, Soldering temperature: 220℃ max; (6)TSTG, Storage temperature: –65 to 150℃.
Features
XC3S1500-FGG456 features: (1)Revolutionary 90-nanometer process technology; (2)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (3)Logic resources: Abundant logic cells with shift register capability; Wide multiplexers; Fast look-ahead carry logic; Dedicated 18 x 18 multipliers; JTAG logic compatible with IEEE 1149.1/1532 specifications; (4)Digital Clock Manager (up to four DCMs): Clock skew elimination; Frequency synthesis; High resolution phase shifting; (5)Eight global clock lines and abundant routing; (6)Fully supported by Xilinx ISE development system: Synthesis, mapping, placement and routing; (7)MicroBlaze processor, PCI, and other cores.

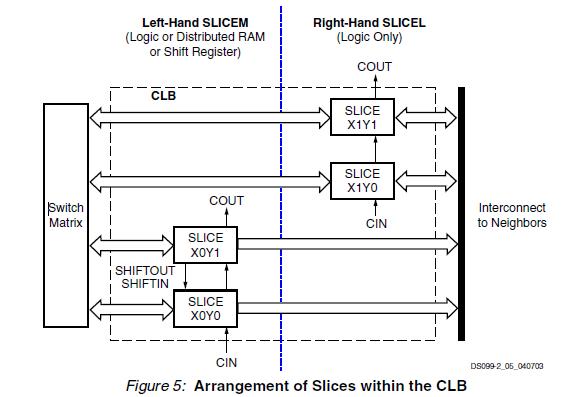

Diagrams
 |
