Product Summary

The AM29F800BT-70ED is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 44-pin SO, 48-pin TSOP, and 48-ball FBGA packages.

Parametrics

AM29F800BT-70ED absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –2.0 V to +7.0 V; A9, OE, and RESET: –2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.

Features

AM29F800BT-70ED features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption (typical values at 5 MHz; (5)Flexible sector architecture; (6)Top or bottom boot block configurations; (7)available; (8)Embedded Algorithms; (9)Minimum 1,000,000 program/erase cycles per sector guaranteed.

Diagrams

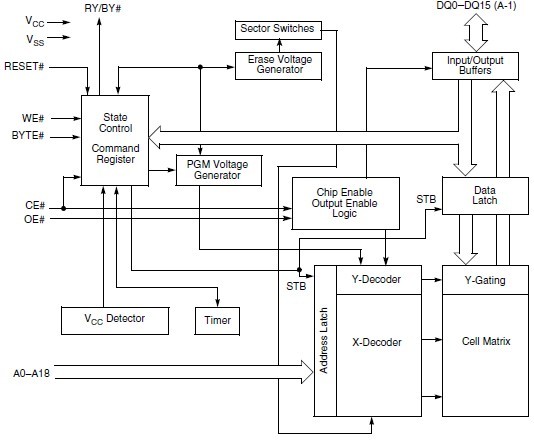

AM29F800BT-70ED diagram
