Product Summary
The TMS320C6211BGFN DSP composes one of the fixed-point DSP families in the TMS320C6000. DSP platform. The TMS320C6211BGFN device is based on the high-performance, advanced VelociTI. very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making the TMS320C6211BGFN an excellent choice for multichannel and multifunction applications. The TMS320C6211BGFN has a complete set of development tools which includes: a new C compiler, an assembly optimizer to simplify programming and scheduling, and a Windows. debugger interface for visibility into source code execution.
Parametrics
TMS320C6211BGFN absolute maximum ratings: (1)Supply voltage range, CVDD: -0.3 V to 2.3 V; (2)Supply voltage range, DVDD: -0.3 V to 4 V; (3)Input voltage range: -0.3 V to 4 V; (4)Output voltage range: -0.3 V to 4 V; (5)Operating case temperature ranges, TC: 0℃ to 90℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TMS320C6211BGFN features: (1)Excellent Price/Performance Digital Signal Processors (DSPs); (2)VelociTI. Advanced Very Long Instruction Word (VLIW) C62x. DSP Core (C6211/11B); (3)Instruction Set Features; (4)L1/L2 Memory Architecture; (5)32-Bit External Memory Interface; (6)Enhanced Direct-Memory-Access (EDMA) Controller (16 Independent Channels); (7)16-Bit Host-Port Interface (HPI)- Access to Entire Memory Map; (8)Two 32-Bit General-Purpose Timers; (9)Flexible Phase-Locked-Loop (PLL) Clock Generator; (10)3.3-V I/Os, 1.8-V Internal.

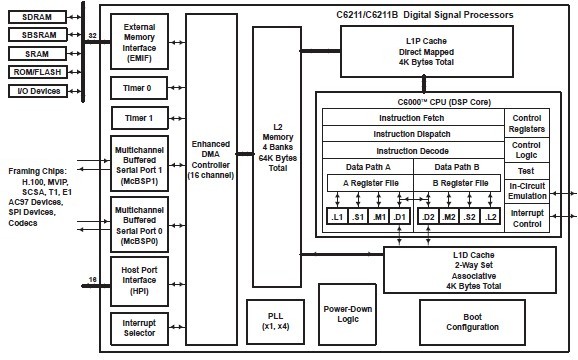

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320C6211BGFN150 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Proc |
Data Sheet |
|
|
||||||||||||
|
TMS320C6211BGFN167 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Proc |
Data Sheet |
|
|
||||||||||||
