The 7MBP75RA120-05 is a 1200V, 75A IGBT-IPM.
Parametrics
7MBP75RA120-05 absolute maximum ratings: (1)DC bus voltage, VDC: 900V; (2)DC bus voltage (surge), VDC(surge): 1000V; (3)DC bus voltage (short operating), VSC: 800V; (4)Collector-Emitter voltage, VCES: 1200V; (5)DB Reverse voltage, VR: 1200V; (6)Junction temperature, Tj: 150℃; (7)Input voltage of power supply for Pre-Driver, VCC: 20V; (8)Input signal voltage, Vin: VzV; (9)Input signal current, Iin: 1mA; (10)Alarm signal voltage, VALM: VccV; (11)Alarm signal current, IALM: 15mA; (12)Storage temperature, Tstg: -40 to 125℃; (13)Operating case temperature, Top: -20 to 100℃.
Features
7MBP75RA120-05 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)Compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in built-in control circuit.

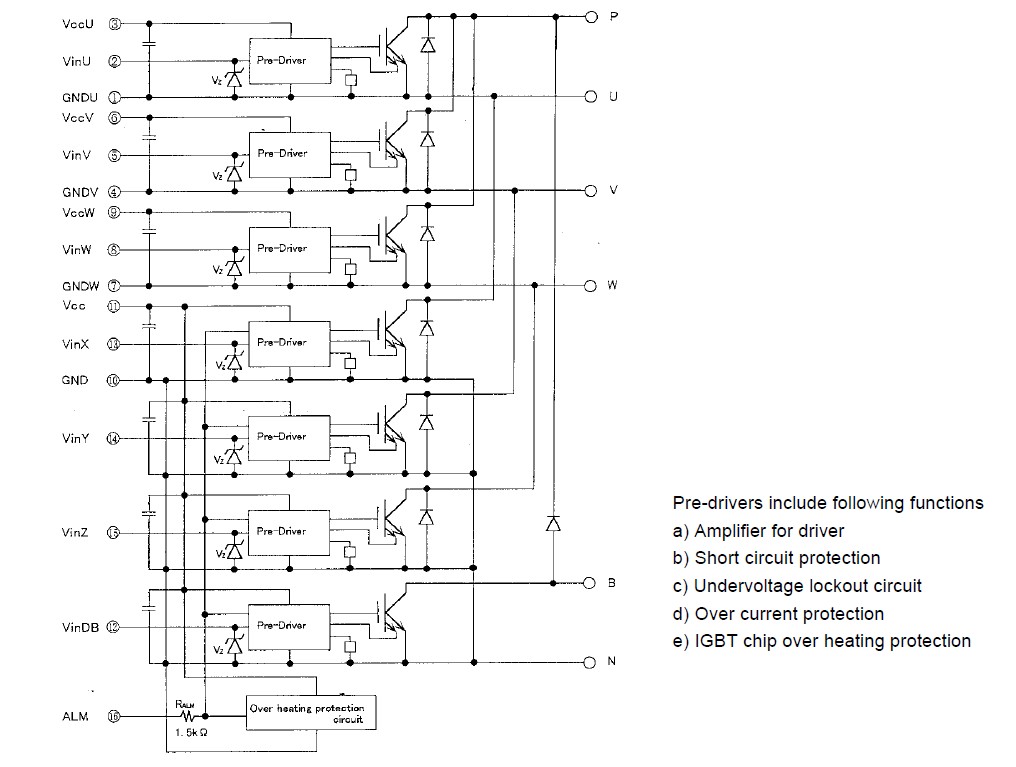

Diagrams
 |
