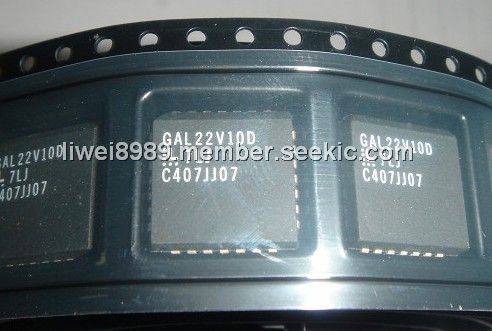

Product Summary
The GAL22V10D-7LJ is a high performance E2CMOS PLD generic array logic. The GAL22V10D-7LJ has a variable number of product terms per OLMC. Of the ten available OLMCs, two OLMCs have access to eight product terms (pins 14 and 23, DIP pinout), two have ten product terms (pins 15 and 22), two have twelve product terms (pins 16 and 21), two have fourteen product terms (pins 17 and 20), and two OLMCs have sixteen product terms (pins 18 and 19). In addition to the product terms available for logic, each OLMC of the GAL22V10D-7LJ has an additional product-term dedicated to output enable control. The output polarity of each OLMC can be individually programmed to be true or inverting, in either combinatorial or registered mode. This allows each output to be individually configured as either active high or active low.
Parametrics
GAL22V10D-7LJ absolute maximum ratings: (1)Supply voltage VCC: -0.5 to +7V; (2)Input voltage applied: -2.5 to VCC +1.0V; (3)Off-state output voltage applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Ambient Temperature with Power Applied: -55 to 125℃.
Features
GAL22V10D-7LJ features: (1)High performance E2CMOS-technology; (2)Active pull-ups on all pins; (3)Compatible with standard 22V10 devices; (4)50% to 75% reduction in power versus bipolar; (5)E2 cell technology; (6)Ten output logic macrocells; (7)Preload and power-on reset of registers.

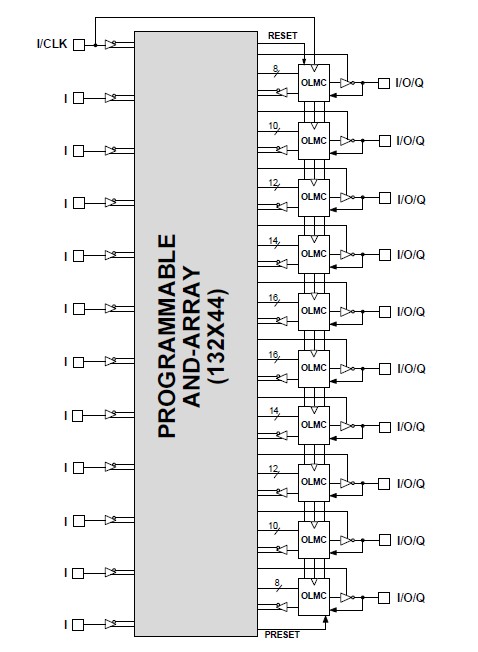

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL22V10D-7LJ |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 22 I/O |
Data Sheet |
|
|
||||||
|
GAL22V10D-7LJI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
Negotiable |
|
||||||
|
GAL22V10D-7LJN |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||
|
GAL22V10D-7LJNI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
Negotiable |
|
||||||
