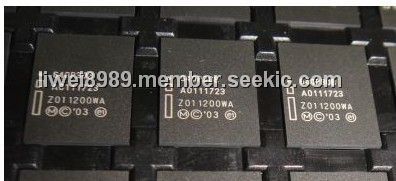

PC28F640P30B

BGA, numonyx strata flash, embedded memory, High performance, 85 ns, 52 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: PC28F640P30B

Brand:: Intel Corporation - Intel | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. NaNa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-22

From Other Seller

Part Number:PC28F640P30B
US $0.10 - 0.10
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PC28F640P30B is a numonyx strata flash embedded memory. The PC28F640P30B provides density upgrades from 64-Mbit through 512-Mbit. This PC28F640P30B provides high performance at low voltage on a 16-bit data bus. Individually erasable memory blocks are sized for optimum code and data storage. Upon initial power up or return from reset, the PC28F640P30B defaults to asynchronous pagemode read. Configuring the Read Configuration Register enables synchronous burstmode reads. In synchronous burst mode, output data is synchronized with a usersupplied clock signal. A WAIT signal of the PC28F640P30B provides an easy CPU-to-flash memory synchronization.

Parametrics

PC28F640P30B absolute maximum ratings: (1)Temperature under bias: –40 ℃ to +85 ℃; (2)Storage temperature: –65 ℃ to +125 ℃; (3)Voltage on any signal (except VCC, VPP and VCCQ): –0.5 V to +4.1 V; (4)VPP voltage: –0.2 V to +10 V; (5)VCC voltage: –0.2 V to +2.5 V; (6)VCCQ voltage: –0.2 V to +4.1 V; (7)Output short circuit current: 100 mA.

Features

PC28F640P30B features: (1)High performance; (2)85 ns initial access; (3)52 MHz with zero wait states, 17ns clock-to-data output synchronous-burst read mode; (4)25 ns asynchronous-page read mode; (5)4-, 8-, 16-, and continuous-word burst mode; (6)Buffered Enhanced Factory Programming (BEFP) at 5 μs/ byte (Typ); (7)1.8 V buffered programming at 7 μs/byte (Typ)Architecture; (8)Multi-Level Cell Technology: Highest Density at Lowest Cost; (9)Asymmetrically-blocked architecture; (10)Four 32-KByte parameter blocks: top or bottom configuration; (11)128-KByte main blocks.
