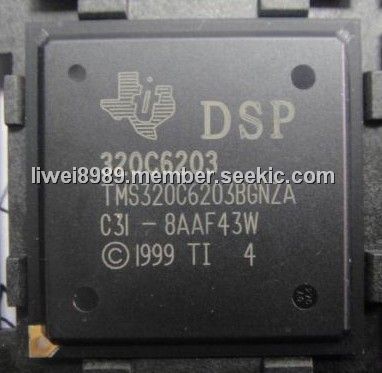

TMS320C6203BGNZA

Fixed-point, digital signal processors, BGA, 3.3-V I/Os, 1.5-V Internal, 32-Bit, Host-Port Interface

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: TMS320C6203BGNZA

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 99+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. NaNa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-12

From Other Seller

Part Number:TMS320C6203BGNZA
US $0.10 - 0.10
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

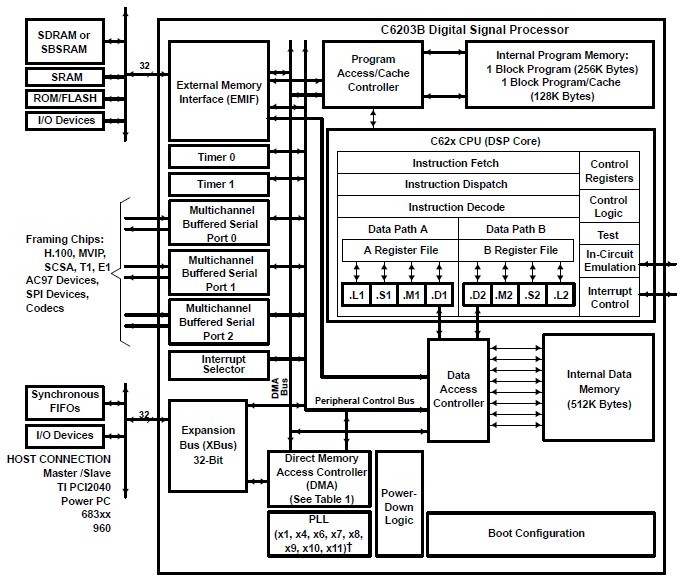

The TMS320C6203BGNZA device is part of the TMS320C62x. fixed-point DSP generation in the TMS320C6000. DSP platform. The C62x. DSP devices are based on the high-performance, advanced VelociTI. very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. The TMS320C6203BGNZA device program memory consists of two blocks, with a 256K-byte block configured as memory-mapped program space, and the other 128K-byte block user-configurable as cache or memory-mapped program space. Data memory for the TMS320C6203BGNZA consists of two 256K-byte blocks of RAM. The TMS320C6203BGNZA device has a powerful and diverse set of peripherals. The peripheral set includes three multichannel buffered serial ports (McBSPs), two general-purpose timers, a 32-bit expansion bus (XBus) that offers ease of interface to synchronous or asynchronous industry-standard host bus protocols, and a glueless 32-bit external memory interface (EMIF) capable of interfacing to SDRAM or SBSRAM and asynchronous peripherals.

Parametrics

TMS320C6203BGNZA absolute maximum ratings: (1)Supply voltage range, CVDD: - 0.3 V to 1.8 V; (2)Supply voltage range, DVDD: -0.3 V to 4 V; (3)Input voltage range: -0.3 V to 4 V; (4)Output voltage range: -0.3 V to 4 V; (5)Operating case temperature ranges, TC:: 0℃ to 90℃; (6)(A version): C6203BGNZA-250: -40℃ to 105℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Temperature cycle range, (1000-cycle performance): -40℃ to 125℃.

Features

TMS320C6203BGNZA features: (1)High-Performance Fixed-Point Digital Signal Processor (DSP); (2)7M-Bit On-Chip SRAM; (3)32-Bit External Memory Interface (EMIF); (4)Four-Channel Bootloading; (5)Flexible Phase-Locked-Loop (PLL) Clock Generator; (6)32-Bit Expansion Bus; (7)Two 32-Bit General-Purpose Timers; (8)0.15-μm/5-Level Metal Process- CMOS Technology; (9)3.3-V I/Os, 1.5-V Internal.
