Product Summary
The LM117HVK is an adjustable 3-terminal positive voltage regulator capable of supplying either 0.5A or 1.5A over a 1.2V to 57V output range. The LM117HVK is exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulator. In addition to higher performance than fixed regulator, the LM117HVK offers full overload protection available only in ICs. Included on the chip are current limit, thermal overload protection and safe area protection.
Parametrics
LM117HVK absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input - Output Voltage Differential: +60V, -0.3V; (3)Maximum Junction Temperature: +150℃; (4)Storage Temperature: -65℃ ≤ TA ≤ +150℃; (5)Lead Temperature (Soldering, 10 sec.): 300℃; (6)ESD Tolerance: 2000V.
Features
LM117HVK features: (1)Adjustable output down to 1.2V; (2)Guaranteed 0.5A or 1.5A output current; (3)Line regulation typically 0.01%/V; (4)Load regulation typically 0.1%; (5)Current limit constant with temperature; (6)Eliminates the need to stock many voltages; (7)80 dB ripple rejection; (8)Output is short-circuit protected.

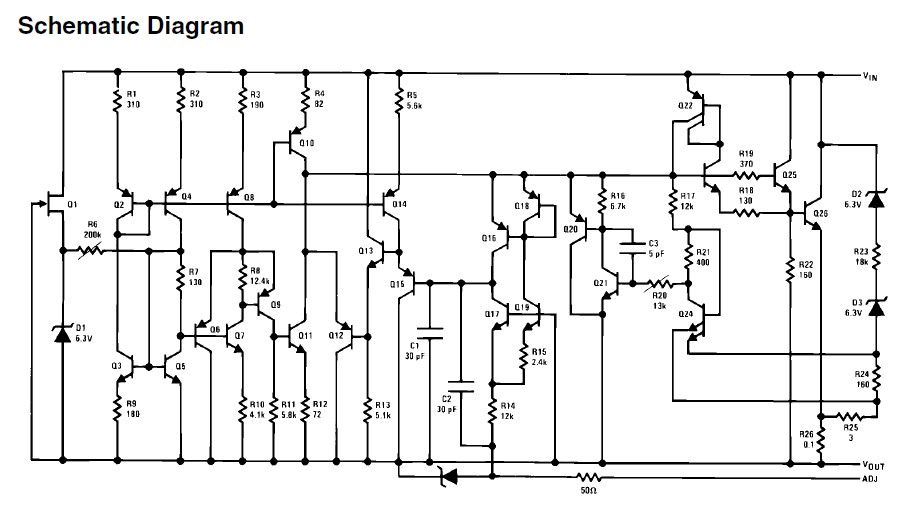

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM117HVK/883 |
|
IC REG LDO ADJ 1.5A TO-3 |
Data Sheet |
|
|
||||||
